| APT10035JLL | ||
|---|---|---|
|
|
||
|
||

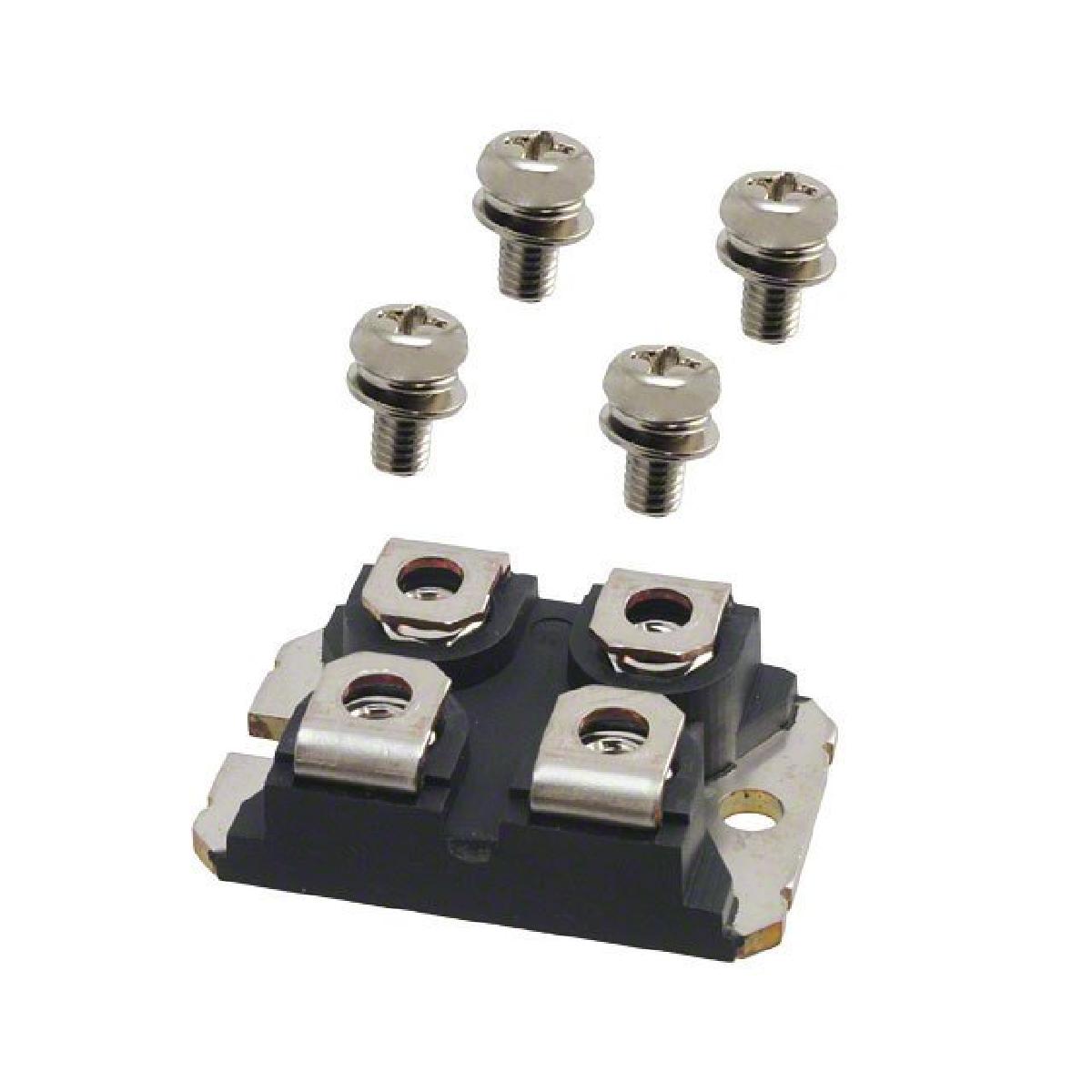

| Product description : 1000V, 25A, 0.35OHM, SOT-227 | ||
| SPQ：1000 | ||
| Datasheet : -- |
- Specifications
- Product Attributes
- Documents
- Product reviews
| FET Feature | Standard |
|---|---|
| Package / Case | SOT-227-4, miniBLOC |
| Drain to Source Voltage (Vdss) | 1000V (1kV) |
| Current - Continuous Drain (Id) @ 25°C | 25A |
| Gate Charge (Qg) @ Vgs | 186nC @ 10V |
| FET Type | MOSFET N-Channel, Metal Oxide |
| Series | POWER MOS 7® |
| Vgs(th) (Max) @ Id | 5V @ 2.5mA |
| Input Capacitance (Ciss) @ Vds | 5185pF @ 25V |
| Rds On (Max) @ Id, Vgs | 350 mOhm @ 14A, 10V |
| Power - Max | 520W |
| Supplier Device Package | ISOTOP® |
| Standard Package | 10 |
| Packaging | Tube |
| Online Catalog | APT Power MOS 7® MOSFET Series |
| Family | FETs - Modules |
| Mounting Type | Chassis Mount |
| ECCN | EAR99 |
