线易微B1205D：12V输入5V输出2.5W功率贴片式隔离电源方案

Release time：2025-07-15
author：AMEYA360
source：线易微
reading：443

　　方案编码：B1205D-2W5-6793RE-78G5N

　　线易微CMP6793RE+CMT78G5N 是一款小型化的隔离电源方案。驱动器芯片和变压器配合必要的容阻和整流二极管，可以实现12V输入,5V输出2.5W功率的隔离非稳压电源，方案简洁，可靠性高。

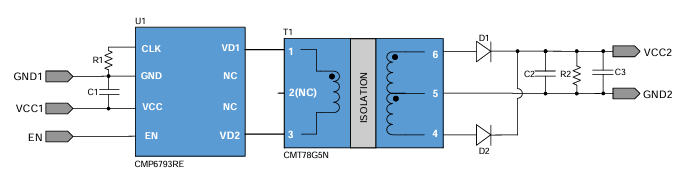

　　01 方案原理图

线易微B1205D：12V输入5V输出2.5W功率贴片式隔离电源方案

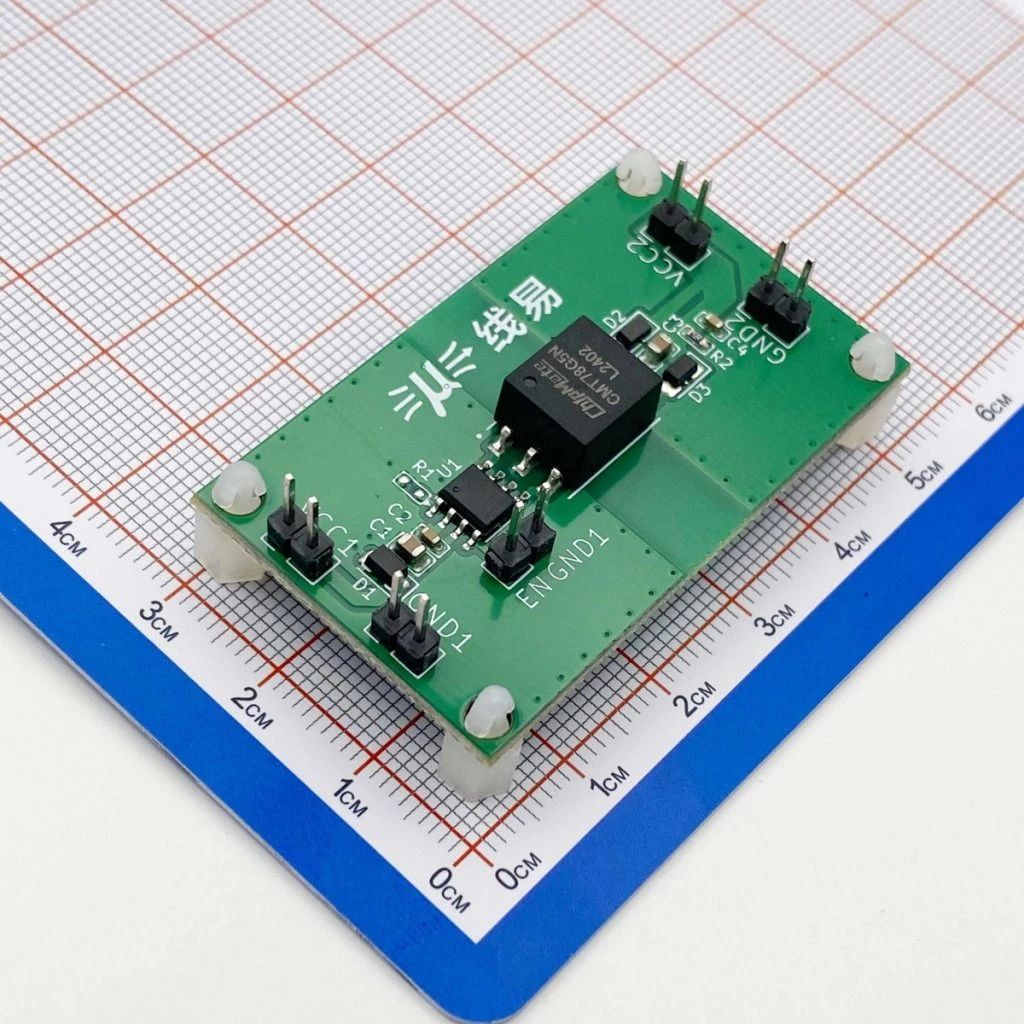

　　02 方案照片

线易微B1205D：12V输入5V输出2.5W功率贴片式隔离电源方案

　　03 方案特点

　　长期短路保护和自恢复功能

　　集成过流和过温检测和保护功能

　　隔离电压2500VAC
